Isuzu Engine Carbon Cleaning

What we see most on Isuzu engines, what causes it, and which clean fixes it. Every job starts with a scan and a quote at our Kings Park workshop.

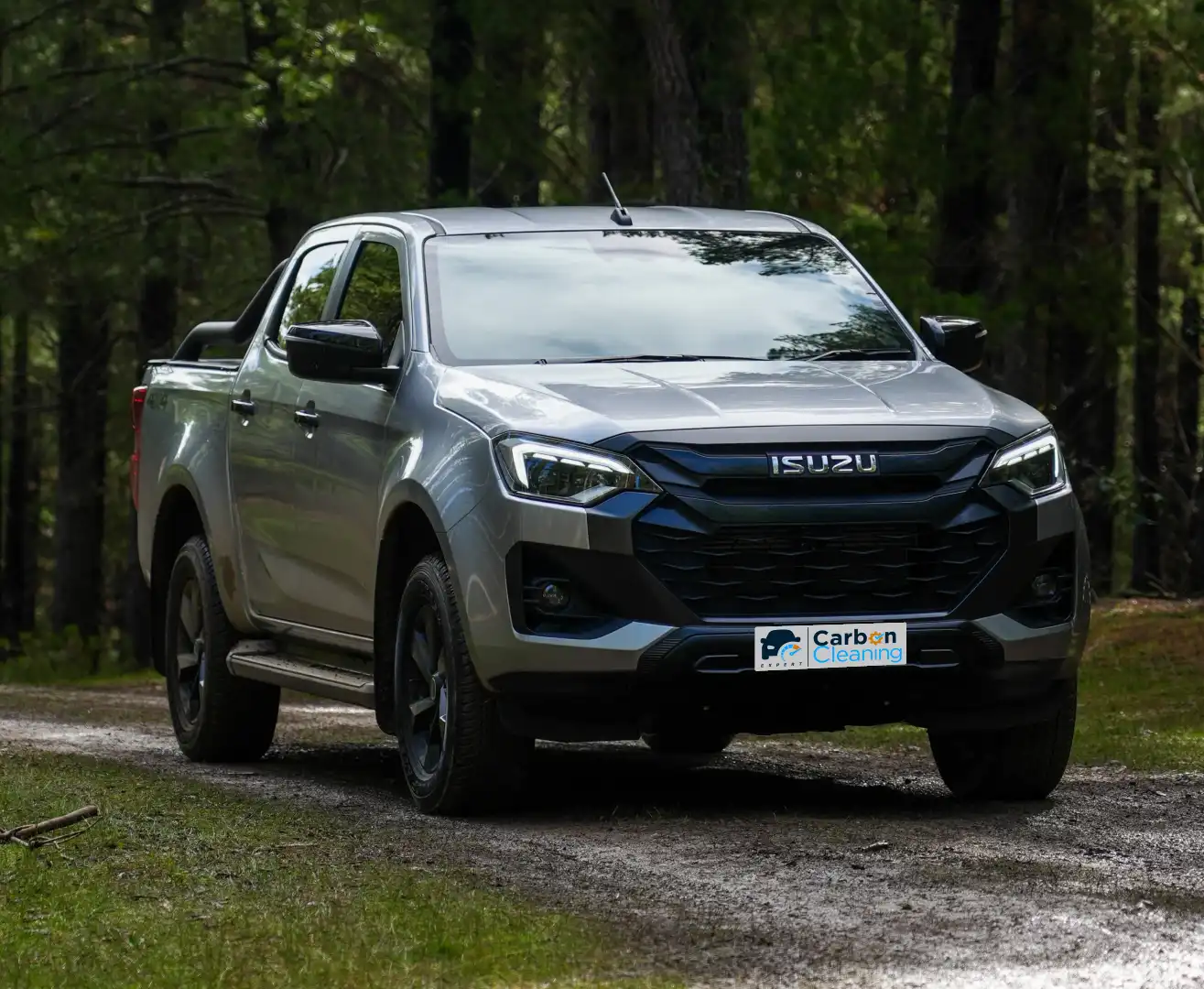

Isuzu engine carbon cleaning at Expert Carbon Cleaning, Kings Park Sydney
  • Free scanbefore any work
  • Kings ParkSydney workshop
  • 20+ yrsMTA certified
  • 4.9on Google

Which Isuzu do you have?

Isuzu builds one thing in Australia and builds it for work: the 3.0-litre four-cylinder turbo-diesel in the D-Max and MU-X. It is a durable engine, and almost everything we see on it comes down to how these vehicles get used rather than how they were built — short runs between sites, idling on the job, towing at the weekend, and not much sustained highway driving in between.

That pattern is hard on a diesel. The particulate filter needs heat and time to clear itself, the EGR circuit recirculates soot back into the intake, and both get worse together. Below is what we see most on Isuzu engines, what causes it, and which clean fixes it.

Common Isuzu carbon problems

What we see

If you drive a petrol Isuzu

If you drive a diesel Isuzu

Diesel

Carbon Build-Up Across the Intake Side

  • Recirculated exhaust gas carries soot back into the intake, where it meets oil vapour from the crankcase breather and forms a hard deposit.
  • Low-speed, high-load work — site driving, towing, idling — produces more soot than light highway running.
  • Gradual loss of power, most obvious under load or towing.
  • Fuel economy creeping up over time.
  • Sooty exhaust and a rougher idle than the vehicle used to have.
  • A hydrogen carbon clean clears deposits from the combustion chamber and exhaust side in about an hour, with no disassembly.
  • Where the intake is heavily loaded, the parts come off and are cleaned by hand.

Fixed by

Hydrogen Carbon Clean

$275

See the service →
Diesel

Fuel Injector Deposits

  • High-pressure common-rail injectors sit directly in the combustion chamber, so nozzle tips carbon up over time.
  • Short trips never get the fuel system hot enough to keep them clear.
  • Harder starting, especially cold.
  • Rattle or knock under light throttle.
  • Uneven running and higher consumption.
  • A fuel-system clean restores spray pattern without removing the injectors.
  • We scan first — a genuinely failed injector will not be fixed by cleaning, and you will hear that before we start.

Fixed by

Diesel Injector Cleaning

Quoted after the free scan

See the service →
Diesel

Intake Manifold Soot Loading

  • Soot from the EGR circuit settles in the manifold runners and hardens.
  • Deposits narrow the runners, so the engine draws less air than it should.
  • Flat spot when accelerating or climbing.
  • Black smoke under load.
  • Turbo feels lazy even though the turbo itself is fine.
  • The manifold comes off and is cleaned by hand — chemicals alone will not shift hardened soot.
  • The job finishes with a hydrogen clean through the engine.

Fixed by

EGR & Intake Manifold Cleaning

Quoted after the free scan

See the service →
Diesel

EGR Valve and Cooler Clogging

  • The EGR valve routes exhaust gas back into the intake to lower combustion temperature, and soot accumulates on both the valve and the cooler.
  • Stop-start and idle-heavy use gives the circuit no opportunity to clear.
  • Rough idle and hesitation.
  • Engine warning light with EGR flow codes.
  • Limp mode in bad cases.
  • The valve comes off the engine and is cleaned properly on both sides — cleaning one side only means the other re-contaminates it.
  • Where the intake is loaded as well, the full engine clean addresses the whole path in one visit.

Fixed by

Full Engine Carbon Clean

From $715

See the service →
Diesel

DPF Blockage

  • The particulate filter needs sustained temperature to burn off accumulated soot. Short runs between sites interrupt regeneration part-way through.
  • A leaking injector or a clogged EGR circuit loads the filter faster than it can clear.
  • DPF warning light, then limp mode.
  • Failed or repeatedly interrupted regeneration cycles.
  • Strong smell after a long drive as the filter tries to regenerate.
  • We clean the filter on-car or off-car depending on how blocked it is, and scan for the underlying cause so it does not simply refill.
  • Most filters we see do not need replacing.

Fixed by

DPF Cleaning

From $715

See the service →
Diesel

Fuel System Contamination

  • Water and particulate contamination is a real risk for vehicles refuelled at rural or site-based bowsers.
  • Contamination accelerates injector and pump wear on a high-pressure common-rail system.
  • Loss of power under load.
  • Fuel filter warnings.
  • Rough running that comes and goes.
  • A fuel-system clean plus filter service, after a scan to confirm the fault is deposits rather than a failed component.

Fixed by

Diesel Injector Cleaning

Quoted after the free scan

See the service →

If you drive a hybrid Isuzu

Applies to any Isuzu

Watch us clean an Isuzu

Real jobs from our Kings Park workshop — the same work we would do on yours.

Keeping your Isuzu clean

Prevention

We see plenty of D-Max and MU-X diesels, and the pattern is consistent: it is rarely one component. Soot in the EGR circuit loads the intake, the intake starves the engine of air, and the DPF fills faster than it can clear. Cleaning one part on its own can buy time, so we check the whole chain on the scan and tell you what actually needs doing.

If your D-Max or MU-X has a warning light, has gone into limp mode, or has quietly lost the power it used to have, book a time at our Kings Park workshop. We scan it free first, tell you what it actually needs, and quote before any work starts.

NAS is a Professional and knows his work I was told by mechanic he will open send exhaust for cleaning NAS professional performed at a very reasonable price Plus gave guidance to do 1 hour drive a fortnight to clear Very honest operator.

Ram Kishor · Google review

Before any engine work on your Isuzu, search your VIN on the government vehicle recalls site. Recall repairs are free, so check there first.

  • Give it a sustained run. Nas’s rule of thumb is a steady run of about half an hour every week, or an hour every fortnight. The self-clean (DPF burn) needs heat and time to finish.
  • Do not shut it down mid-regeneration. If the vehicle is running a regen cycle, letting it finish saves you a workshop visit later.
  • Keep the servicing up. Oil condition and filter condition both feed directly into soot loading.
  • Scan early. An EGR fault caught early is a clean; left alone it takes the DPF with it.
