Ford Engine Carbon Cleaning

What we see most on Ford engines, what causes it, and which clean fixes it. Every job starts with a scan and a quote at our Kings Park workshop.

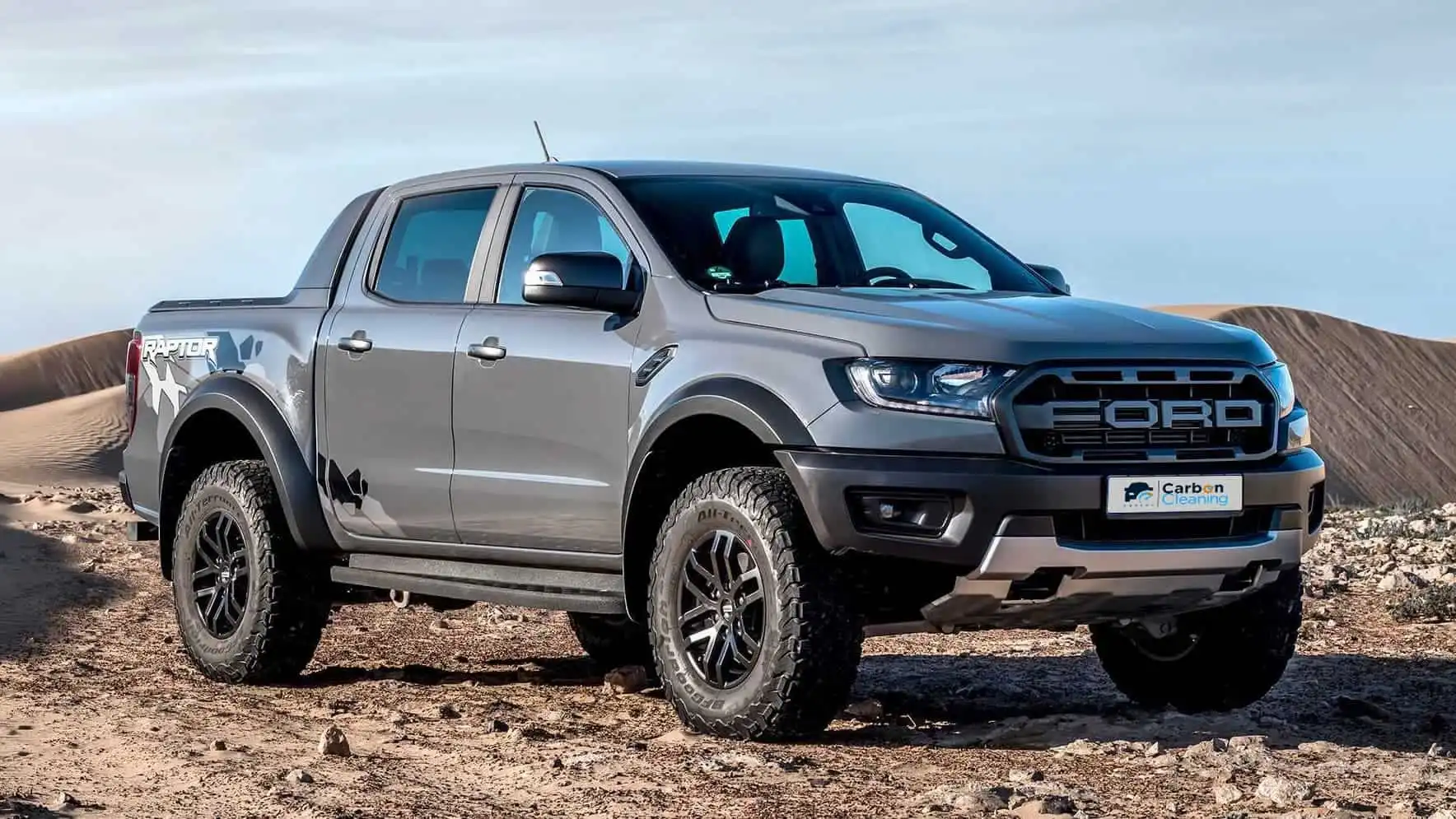

Ford engine carbon cleaning at Expert Carbon Cleaning, Kings Park Sydney
  • Free scanbefore any work
  • Kings ParkSydney workshop
  • 20+ yrsMTA certified
  • 4.9on Google

Which Ford do you have?

Most Fords that come through here are Rangers and Everests, and almost always for the same reason: the particulate filter.

These are working vehicles. Site work, towing, short runs between jobs, long idles with the engine running — it is the duty cycle a diesel likes least, and the filter is the part that shows it first. The sequence is nearly always engine light, then reduced power, then limp mode, and by then most owners have already been told the filter needs replacing.

Usually it does not. We clean filters on the vehicle, and the ones we cannot save are rare.

Whichever engine you have — the 3.2-litre five-cylinder in the older Ranger, or the 2.0-litre bi-turbo in the later ones — the story is the same. The diesel Focus (2011–2015), Kuga (2013–2016) and Escape (2017–2020) have a particulate filter too, so the same applies.

If you have an EcoBoost petrol Focus, Escape or Mustang, those engines inject straight into the cylinder, so it is intake valve carbon instead. The V8 Mustang and the three-cylinder Focus also spray fuel onto the valves, so they rarely need that work.

Common Ford carbon problems

What we see

If you drive a petrol Ford

Petrol

Intake Valve Carbon on the Petrol Models

  • The EcoBoost petrol engines inject fuel straight into the cylinder, so nothing washes the back of the intake valves.
  • Oil vapour drawn through the breather bakes onto the hot valve and hardens.
  • City driving builds it up faster than open-road kilometres.
  • Lumpy idle, worst when cold.
  • Hesitation off the line and a soft mid-range.
  • Misfire codes (P0300–P0304) with the ignition side checking out fine.
  • Walnut blasting is what shifts a hardened deposit — the manifold comes off and every port is blasted back to clean metal.
  • Start earlier and a hydrogen carbon clean will keep the crust from forming in the first place.

Fixed by

Walnut Blasting

Quoted after the free scan

See the service →

If you drive a diesel Ford

Diesel

Engine Light, Reduced Power, Limp Mode

  • The filter fills with soot and the vehicle protects itself by cutting power and holding the revs down.
  • It gets there because regenerations never finish. A ute doing short runs between jobs never gets the sustained drive a regeneration needs.
  • A restricted EGR circuit or a poor injector fills the filter faster than driving alone would, so the warnings come closer together each time.
  • Engine light, then a clear loss of power, then limp mode.
  • A ute that struggles loaded or towing when it was fine a month ago.
  • Codes in the P2002, P2452–P2463 range, and often P245C alongside.
  • Fuel use up, and a hot smell after you park.
  • Where we can, we clean the filter on the vehicle — it is not removed, cut open or replaced. If it has to come off, it gets a three-stage clean and new gaskets, quoted first. Most filters we see do not need replacing, whatever you have been told.
  • We find out why it blocked, because cleaning a filter on a ute that still cannot complete a regeneration only buys a few months.
  • Nothing is deleted or switched off. A ute without its emissions equipment is not roadworthy in New South Wales and will not pass an inspection.

Fixed by

DPF Cleaning

From $715

See the service →
Diesel

EGR and Intake Manifold Coking

  • The EGR valve feeds sooty exhaust gas into the intake, where it meets oil mist from the crankcase breather.
  • The two combine into a thick, greasy deposit that narrows the intake runners.
  • Towing and low-speed site work make it worse, because the intake never gets hot enough to clear itself.
  • A ute that has gone flat off the mark and worse again with a load in the tray.
  • Sooty black smoke when you plant it.
  • An idle that will not settle, with EGR flow codes stored (P0401, P0402, P0403).
  • Turbo that feels like it is arriving late.
  • We clean the EGR circuit and the intake manifold so the airway is clear again.
  • On a Ranger this is very often what has been quietly strangling a ute everyone assumed was just getting old.

Fixed by

EGR & Intake Manifold Cleaning

Quoted after the free scan

See the service →
Diesel

Injector Fouling and Hard Starting

  • Deposits on the injector tips spoil the spray pattern, so diesel arrives as droplets rather than a fine mist.
  • Poor combustion makes more soot, which loads the filter faster — each fault feeds the other.
  • Utes that sit over a long weekend let deposits set on the tips.
  • Long cranking first thing on a cold morning.
  • A rattly, uneven idle.
  • Smoke on start-up and worse economy on the same run.
  • Fuel rail pressure codes (P0087, P0088, P008A).
  • We clean the whole fuel system on the vehicle with the engine running — injectors, pump and rail — nothing removed or sent away for bench testing.
  • On a ute that has also blocked its filter, this is the half of the job that stops it happening again.

Fixed by

Diesel Injector Cleaning

Quoted after the free scan

See the service →

If you drive a hybrid Ford

Applies to any Ford

Any Ford

Told You Need a New Filter

  • A blocked filter is often quoted as a replacement, because replacing is quicker than diagnosing.
  • On a hard-worked ute the intake, the filter and the fuel side are dirty together, so a new filter fitted to a dirty engine blocks again.
  • That is why the second quote is so often worse than the first.
  • A replacement quote that seems out of proportion to how the vehicle drives.
  • The same code returning after a workshop cleared it.
  • A vehicle that has been to more than one place without anything sticking.
  • A full engine carbon clean treats the intake and exhaust sides together, which is the right scope when the whole engine is dirty rather than one part.
  • We scan first, show you what we found, and give you the price before anything starts. If the filter genuinely is beyond cleaning, we will tell you — but get it looked at before you buy one.

Fixed by

Full Engine Carbon Clean

From $715

See the service →

Watch us clean a Ford

Real jobs from our Kings Park workshop — the same work we would do on yours.

Keeping your Ford clean

Prevention

To keep a Ranger or Everest clean, give the particulate filter the open-road runs a work ute rarely gets. Keep the EGR and fuel side clean too, so the filter does not fill faster than it can clear. That applies to the older 3.2 five-cylinder and the 2.0 bi-turbo alike. Towing, idling and short runs between jobs all load it faster. On a direct-injection EcoBoost petrol, the carbon builds on the intake valves instead.

If the engine light is on or it has gone into limp mode, book a time at our Kings Park workshop. We scan it free first, tell you what it needs, and quote before any work starts. On a hard-worked ute that may be an on-car DPF clean with a fuel system clean alongside.

NAS is a Professional and knows his work I was told by mechanic he will open send exhaust for cleaning NAS professional performed at a very reasonable price Plus gave guidance to do 1 hour drive a fortnight to clear Very honest operator.

Ram Kishor · Google review

Before any engine work on your Ford, search your VIN on the government vehicle recalls site. Recall repairs are free, so check there first.

  • Get a second look before a new filter. A new filter fitted to a dirty engine blocks again, because the EGR and injectors keep feeding it. Most of the time the filter can be cleaned on the vehicle.
  • Notice a self-clean that was cut short. A hot smell after you park can mean it stopped mid self-clean. Nas’s rule of thumb is a steady run of about half an hour every week, or an hour every fortnight, so the next one can finish.
  • Have the injectors cleaned with the filter. Deposits on the tips make more soot, which refills a cleaned filter. A ute that sits over a long weekend lets them set.
